Vertical Horizontal Connectors TKF

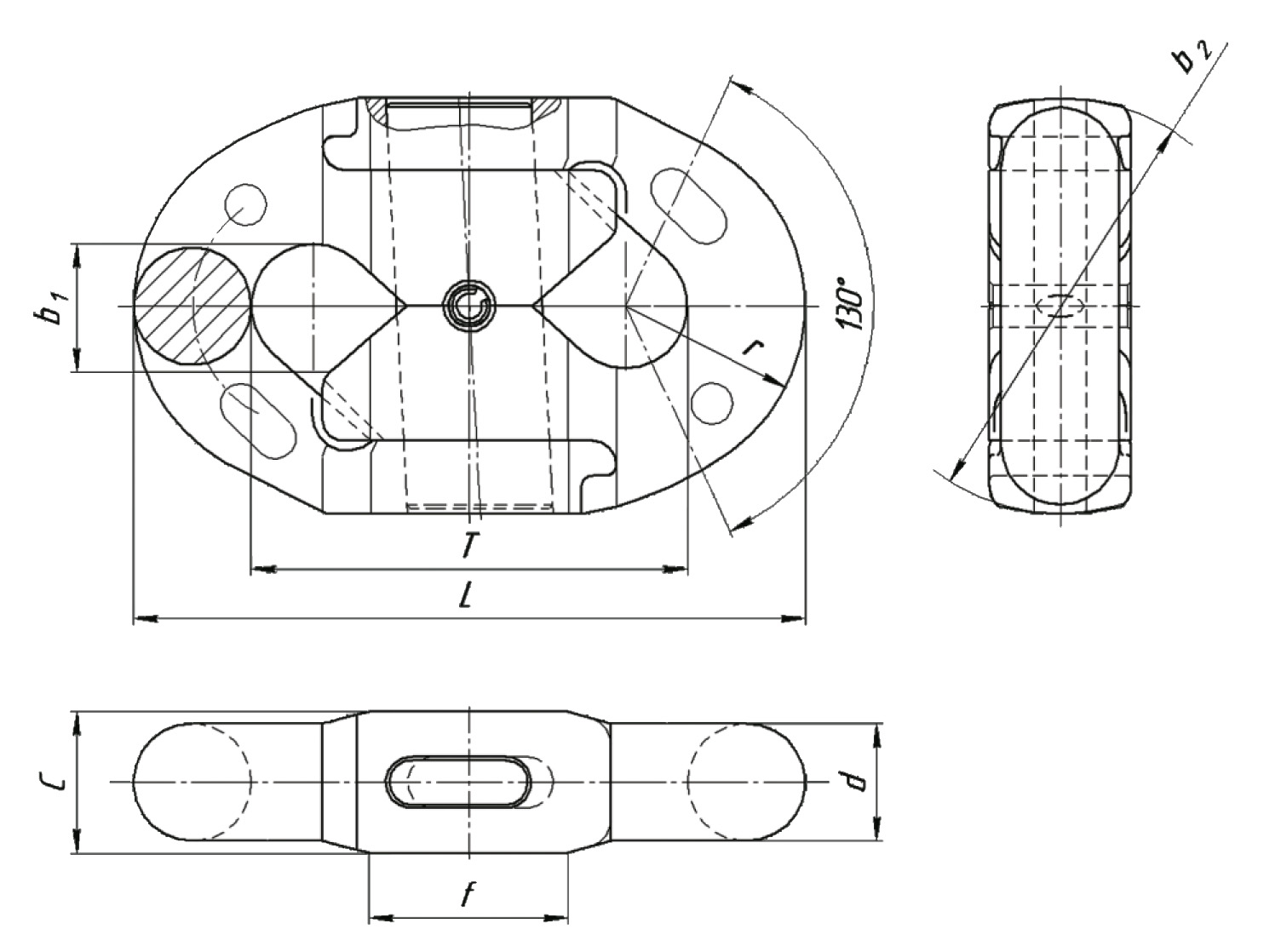

TKF Connectors: The mechanical properties are at least the equivalent of DIN 22258 Part 1.
| CHAIN
SIZE mm |
Ref no. | d | t | b1 min |
b2 max |
c max |
f max |
I max |
r +2 |
TEST FORCE kN |
BREAKING FORCE Kn min |
WEIGHT kg |
| 30x108 | TKF 30 | 30 +/-0,9 | 108 +/-1,1 | 32 | 109 | 36 | 72 | 170 | 46 | 850 | 1020 | 2,6 |
| 34x126 | TKF 34 | 34 +/-1,0 | 126 +/-1,3 | 36 | 121 | 41 | 82 | 196 | 52 | 1080 | 1290 | 4,2 |
| 38x137 | TKF 38 | 38 +/-1,1 | 137 +/-1,4 | 40 | 134 | 46 | 92 | 215 | 58 | 1360 | 1610 | 5,7 |
