Vertical Block Connectors VT

The VT series of connectors have been designed as vertical connectors for flat type chains. The mechanical properties are greater than DIN 22258 Part 3.

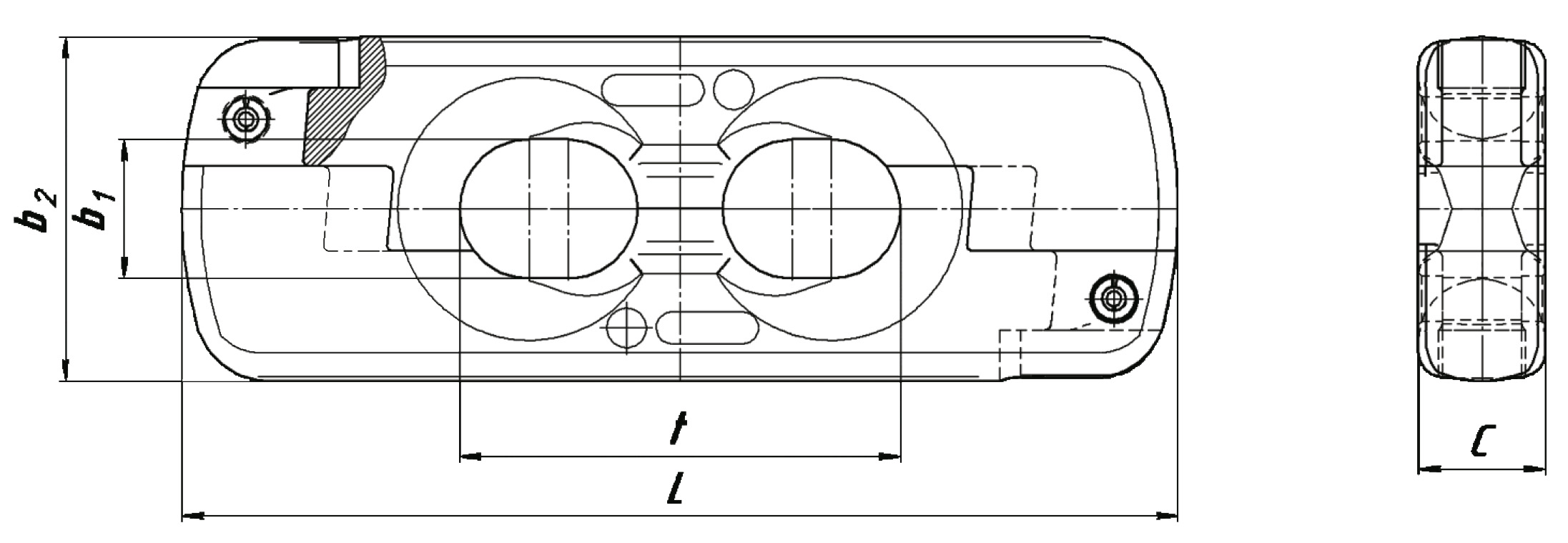

CHAIN SIZE
mm
PART NUMBER d t b1
b2
I C BREAKING
FORCE
Kn min
WEIGHT
kg
34x126 VT 34x 126 34 126 37 98 279 35,5 1600 5,9
38x137 VT 38x 137 38 137 41 109 308 39,5 2000 8,0
38x146 VT 38x 146 38 146 41 109 335 39,5 2000 8,7
42x146 VT 42x 146 42 146 44 114 330 43 2500 9,8
48x152 VT 48x 152 48 152 50 124 334 51,5 2900 12,4
48 X 144/160 VT 48 x 144/160 48 144 50 121 353 58 3100 14,7
